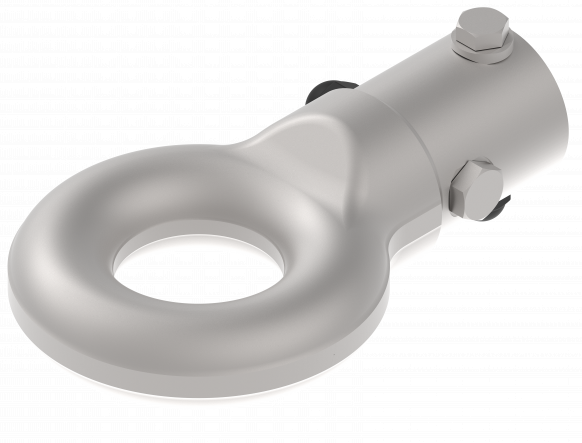

Drawbar eye "french"
Drawbar eye "french"
176,00 €
Price information
List price220,00 €
Internet price176,00 €
Price incl. VAT (0.00% - United States)*
Article number: 202723.001
EAN: 4250269226635
EAN: 4250269226635
Not available
In stock: 99+
*All prices are incl. tax and do not include shipping costs. The specified web price is only valid in this web shop. Our staff won't be able to grant the same conditions for standard orders.
Price level: 08.20.2024
Article number
202723.001
Designation
Drawbar eye
Type
französisch
Eye shape
42
Connection
Ø50 mm
Permissible total weight
3500 kg
Support load
350 kg
Screw connection
1x horizontal, 1x vertical
Bolt
M14/M12
Version
without socket
D/DC value
31 kN

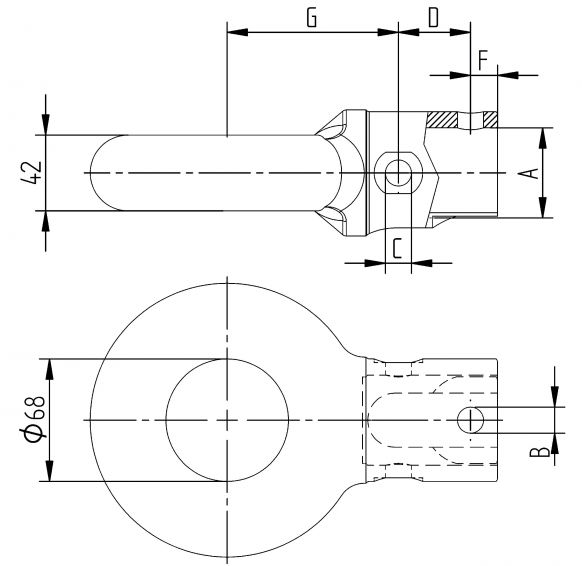

B
12.5 mm
C
14.5 mm
D
40 mm
F
15 mm
G
120 mm
ECE license mark
E1 55R-012272
Weight
5.5 kg
French" drawbar eye cpl.
dia50 M14/M12 40 cross / cross
dia50 M14/M12 40 cross / cross
